Why the Star?

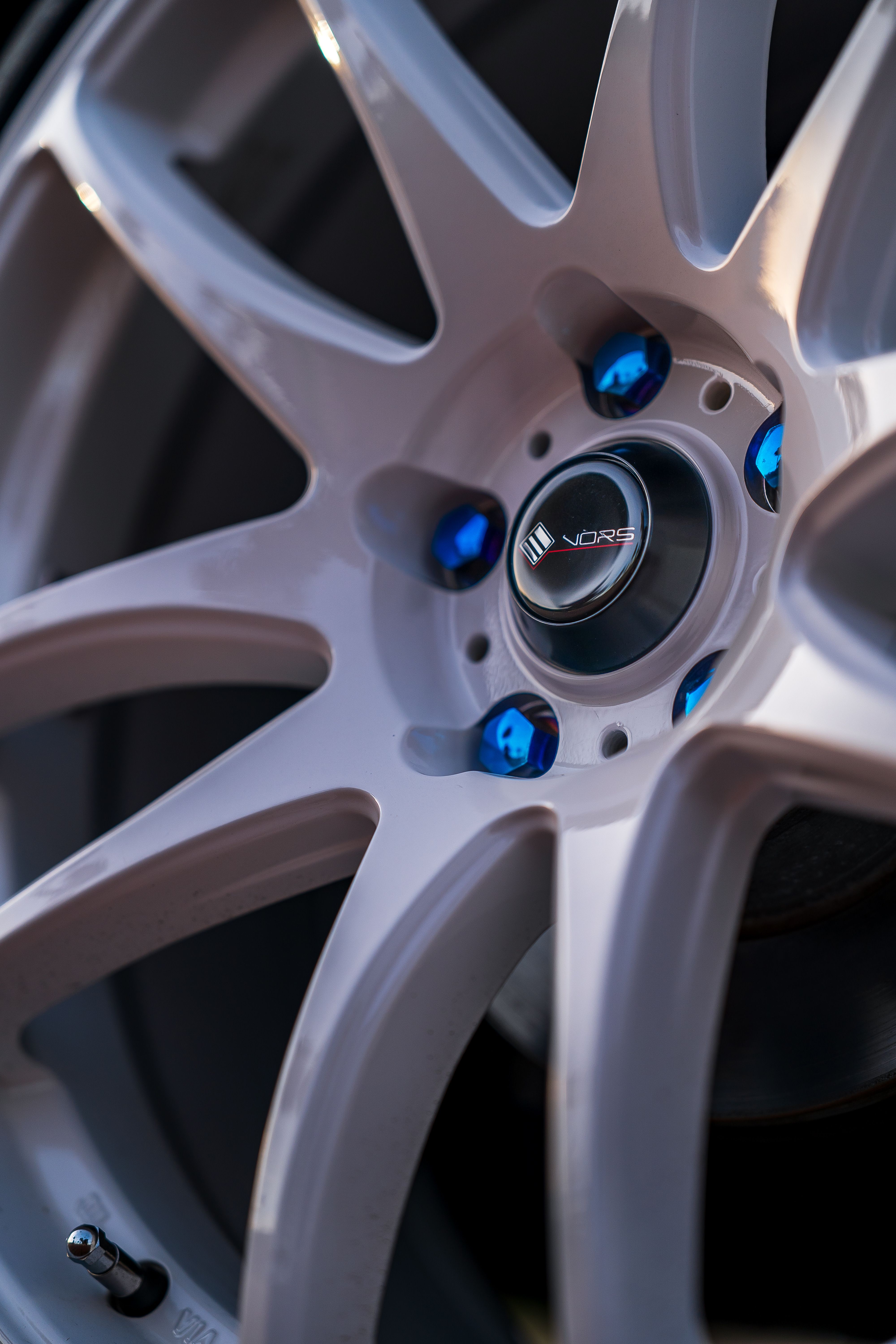

You don't tighten wheel nuts in a circle. You don't go clockwise. You go star-pattern. Opposite corners. Why? Because pressure applied evenly prevents the hub face from warping. Warp the face, and you warp the seal. Break the seal, and water gets in. Water in the bearings is a death sentence for your wheel.
This ain't theory. This is the difference between a smooth ride home and a wheel walking off on I-95 past Richmond.
The Three-Pass Method
- Pass One: Hand-tighten all nuts. Snug only. Feel the threads bite, but don't force it.
- Pass Two: Apply 50% torque (70 ft-lbs) in star pattern: 1-4, 2-5, 3-6. Lock the geometry.
- Pass Three: Full torque (140 ft-lbs) in the same sequence. Verify each nut with the click of the breaker bar.
If you tighten sequentially—1, 2, 3, 4, 5, 6—you create a cantilever effect. The hub bends toward the first nut. By the time you reach six, the first nut is pulling the metal into a permanent bow. That bow becomes a leak. That leak becomes a fire.
The Physics of Pressure
When you apply torque to a stud, you're not just turning a screw. You're stretching it. The tension in that stretch creates the clamping force that holds the wheel. Stretch unevenly, and the tension field fractures. The star pattern ensures the stress vectors cancel out, leaving a uniform pressure plate.
This is the same principle that holds the cylinder head on a diesel. Same math. Different scale.
